Accurpress CNC Hydraulic Press Brake, 4' x 25-Ton
Stock Number: 010-068
Model: No. 7254 - 4' x 25-Ton
Serial No. 10745 Age: 2011

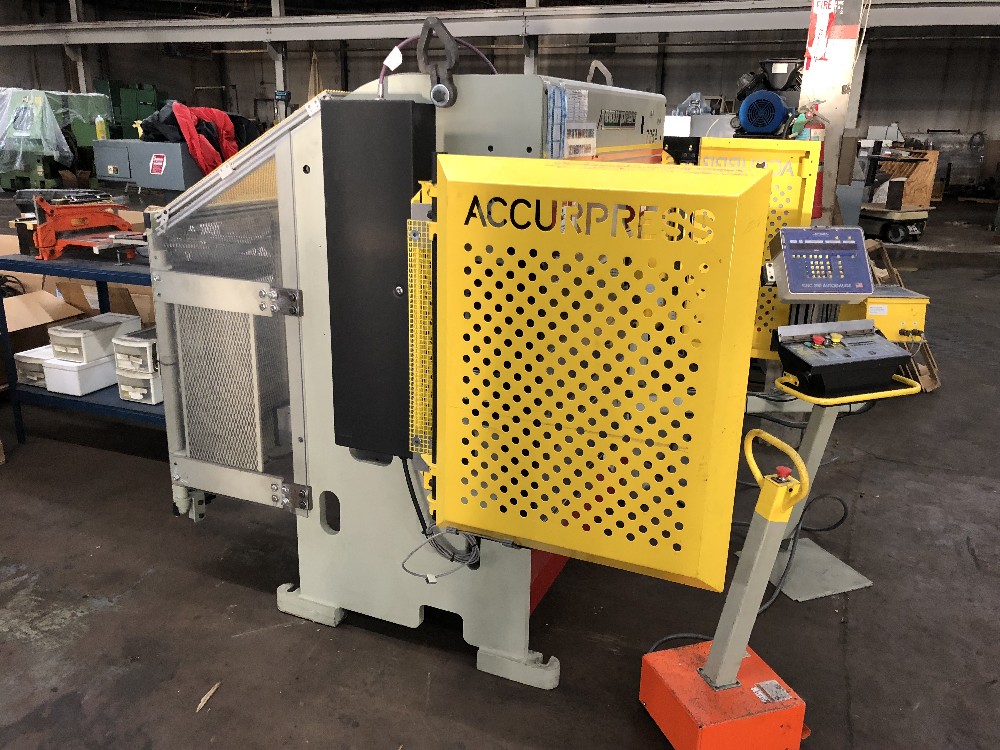

Click to view larger photo
| Specification | Description |
|---|
| Tonnage Capacity: | 25-Tons |
| Bending Capacity in Mild Steel: | 12 Ga. |
| Bending Length: | 51" |
| Distance Between Uprights: | 51" |
| Depth of Throat: | 5--3/4" |
| Maximum Stroke: | 6" |
| Open Height: | 12" |
| Shut Height: | 6" |
| Bed Height: | 34" |
| Advancing Speed Rate: | 200 IPM |
| Pressing Speed Rate: | 28 IPM |
| Return Speed Rate: | 300 IPM |
| Bed Width: | 2" |
| Bed Tool Slot: | 1/2" |
| Approximate Floor Space: | 94" x 80"" High |
| Approximate Shipping Size: | 8'4" x 6' x 6' High |
| Machine Weight, Approx.: | 5000 Lbs. |
Equipped With:
24" 2-Axis Automec CNC300 Autogauge Backgauge System
ISB Merlin MTC 3000 Safety Light Curtain System
Operator's Control Station With Dual Palm Buttons
Operator's Foot Switch and E-Stop Pedestal
Accurpress ETS200 CNC Control System
Operator's, Parts & Maintenance Manual
Several Various Pieces of Wilson Tooling
Self-Contained Hydraulic Power Unit
Pressure Adjustment with Gauge
Miscellaneous Brake Dies
Operator's Manual
Lower Die Holder
Wiring Diagram
7.5-HP Hydraulic Pump Motor 208-230/460/3/60
Excellent Condition
Specifications are subject to verification and must be confirmed by buyer prior to purchasing.
