| Specification | Description |
|---|---|
| Max. Workpiece Dimensions, X, Y & Z: | 33" x 27.3" x 12" |
| Max. Workpiece Weight: | 1500 Lbs. |
| X - Axis Travel: | 20.5" |
| Y - Axis Travel: | 14.6" |
| Z - Axis Travel: | 11.82" |
| U, V - Axes Travel: | +/- 2.364" |
| Taper Angle: | +/- 15 Deg. @ 7.98" |
| +/- 30 Deg. @ 3.26" | |
| +/- 45 Deg. @ 1.93" | |
| Controlled Axes: | X, Y, U, V, Z |
| Least Input Increment: | .000004" |
| Least Command Increment: | .000004" |
| Interpolation: | Linear & Circular |
| Max. Programmable Dimension:` | 999.99999" |
| Position Command: | Relative, Absolute & Machine V |

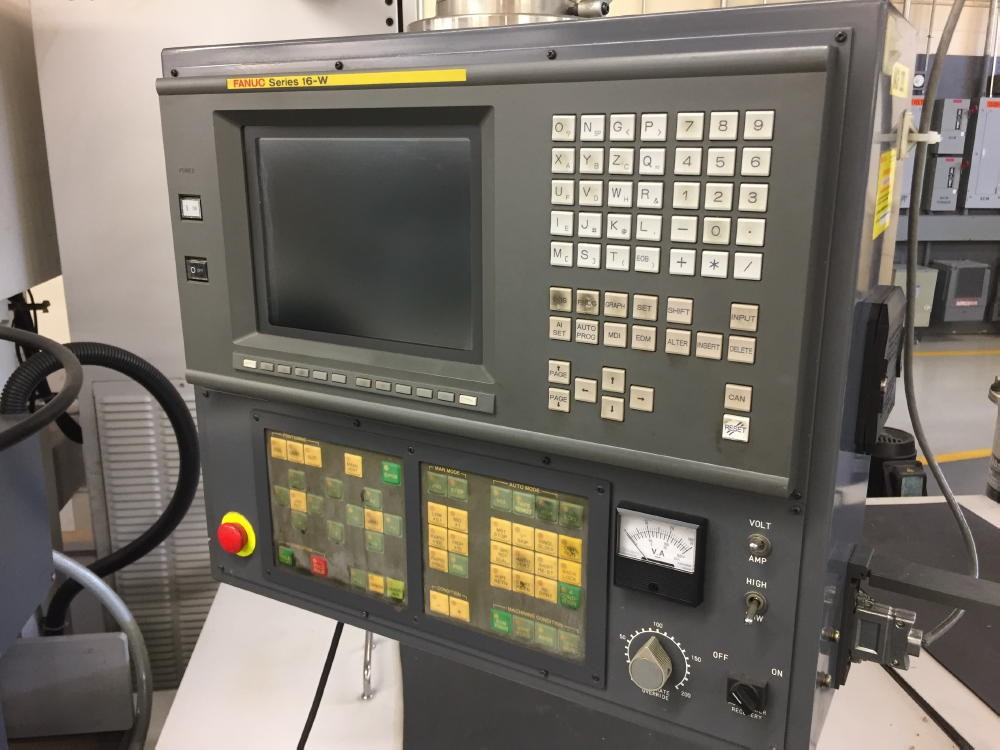

| Display Unit: | 10" Color LCD |
| Postion Display | 5-Axes at One Time |
| Feedrate Rapid Traverse: | 35.4 IPM |
| Feedrate Cutting: | 0.0004 - 1 IPM |
| Wire Diameter Compensation: | 0 - +/- 9.99999" |
| Wire Feedrate: | 0 - 590 IPM |
| Wire Tension: | 200 - 2500 grams |
| Max. Wirre Spool Weight: | 13.5 Lbs. |
| Wire Diameter (Min. - Max.): | .004" - .012" |
| Wire Guide - Upper & Lower Guide: | Round Diamond Die Guide |
| Required Floor Space: | 120" x 122" x 87.5" |
| Machine Weight, Approx.: | 9500 Lbs. |
