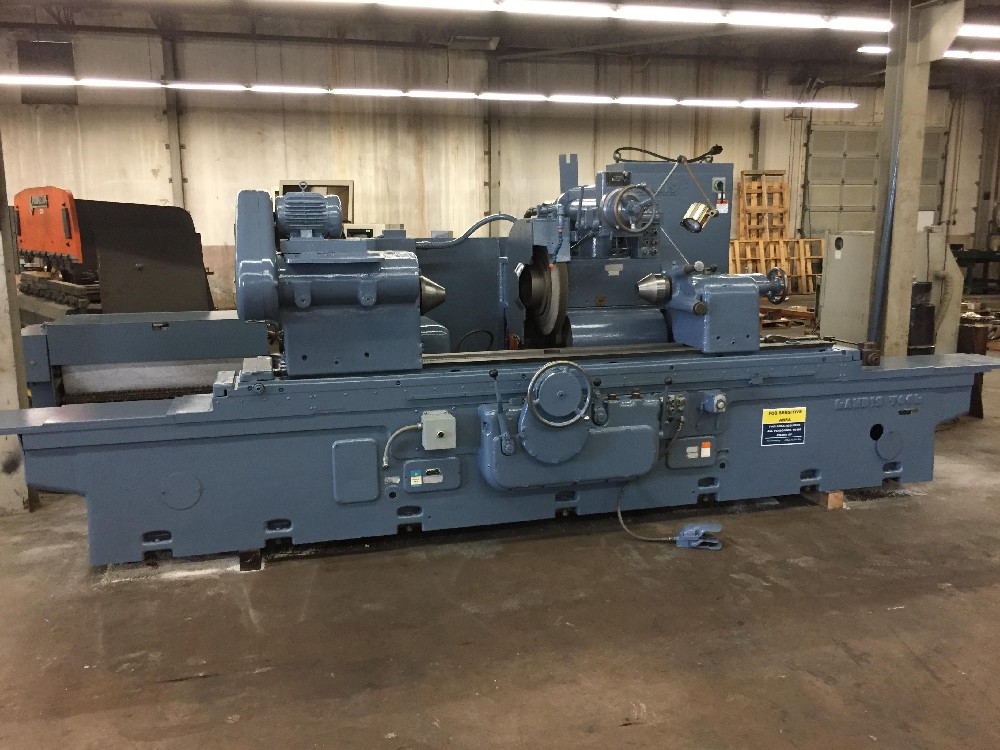

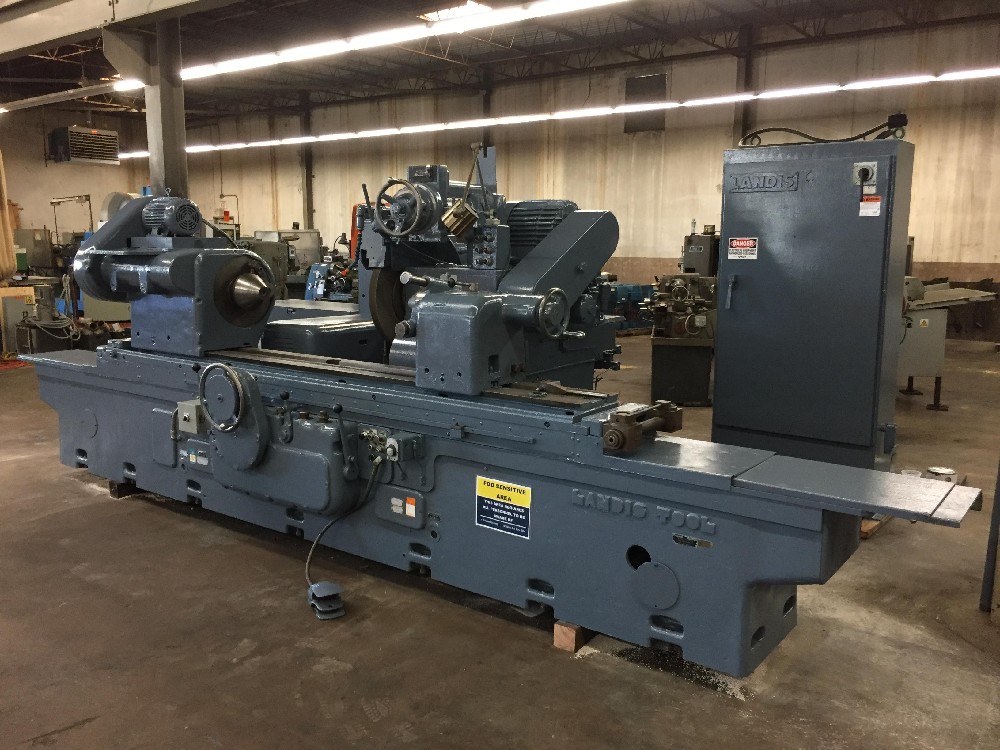

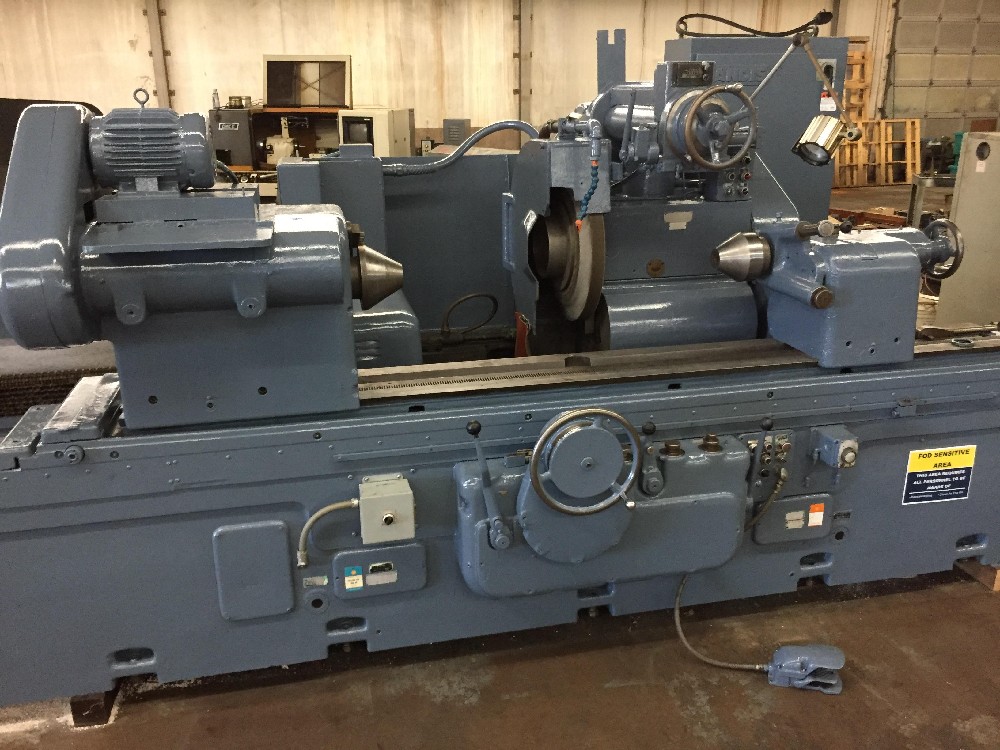

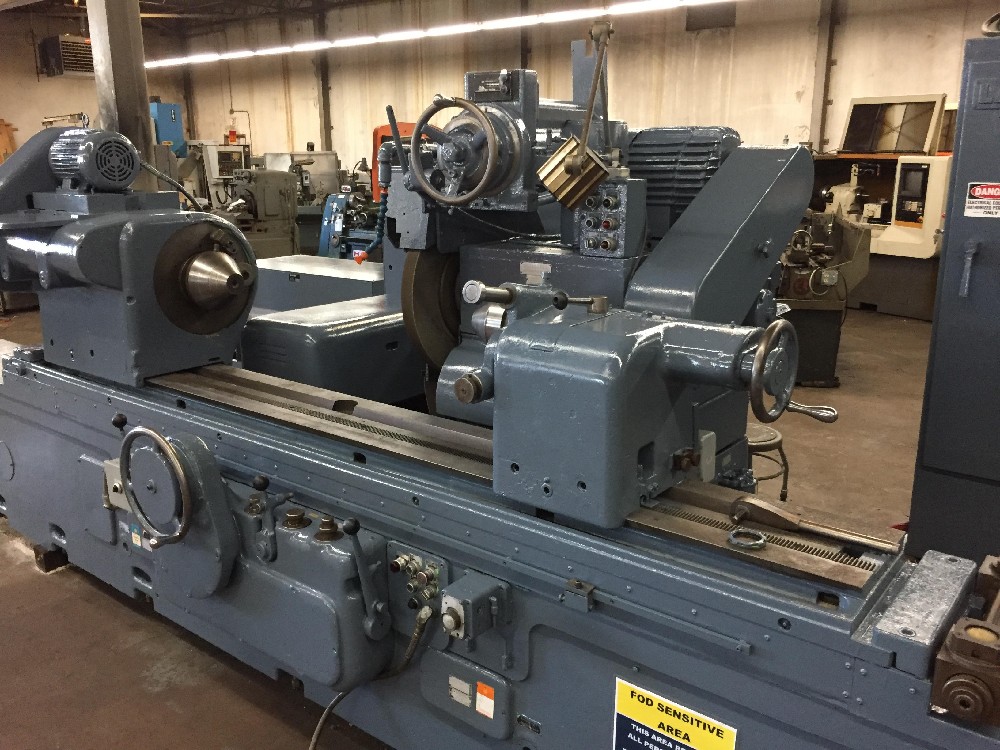

Landis 24" x 72" Plain Hydraulic Cylindrical Grinder, LCHH
Stock Number: 039-285
Model: No. LCHH 24" x 72"
Serial No. 782-1 Age: 1964
Price: $29,500
Automatic Micro Feed Infeed Control
Click to view larger photo
Specification
Description
Grinding Capacity:
24" x 72"
Grinding Wheel Size:
30" x 4" x 12"
Table Speed, Variable:
3 - 240 IPM
Table Taper Adjustment:
-2 to +17 Inches/Ft
Work Head Speeds, Variable:
0 - 140 RPM
Main Machine Dimensions:
220" x 102" x 84"
Electrical Cabinet Dimensions:
42" x 20" x 88"
Barnes Drill Coolant Filter Dimensions:
78" x 42" x 40"
Approx. Machine Weight:
28,000 Lbs.
Equipped With:
AB Powerflex 4 Variable Frequency Work Head Motor Drive

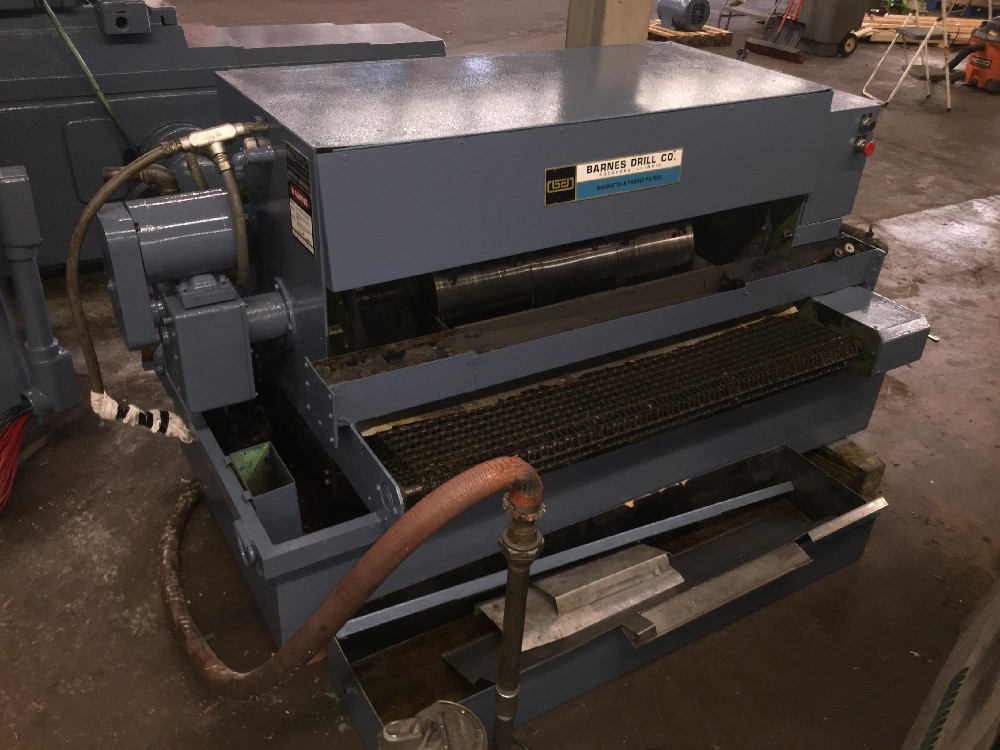

Barnes Drill Magnetic & Fabric Coolant Filtration System
Micro Feed Automatic Infeed, Coarse & Fine Feeds

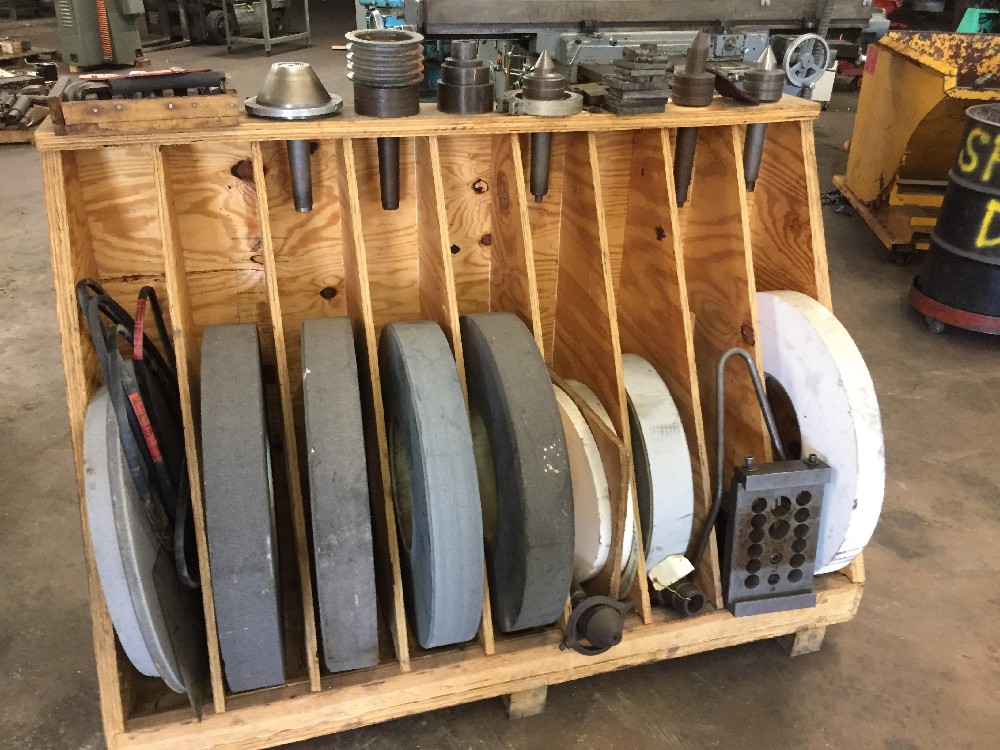

Wheel Rack with (9) Various Extra Wheels
Table Mounted Radius Dresser
Automatic Lubrication System

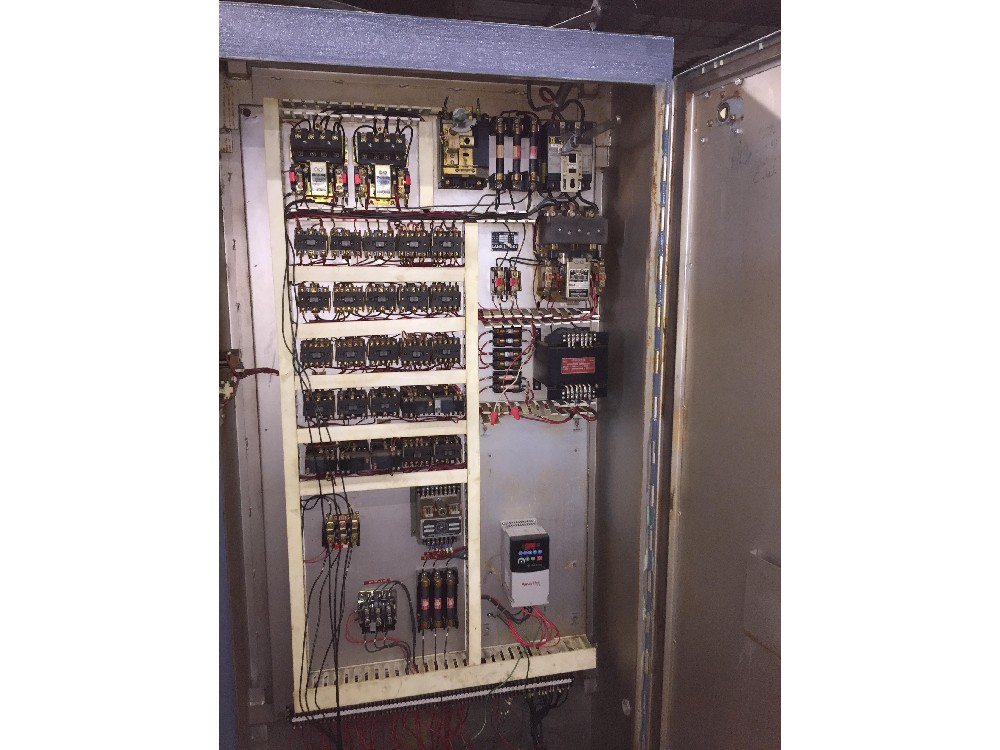

Separate Electrical Cabinet
Grinding Wheel Lifting Tool

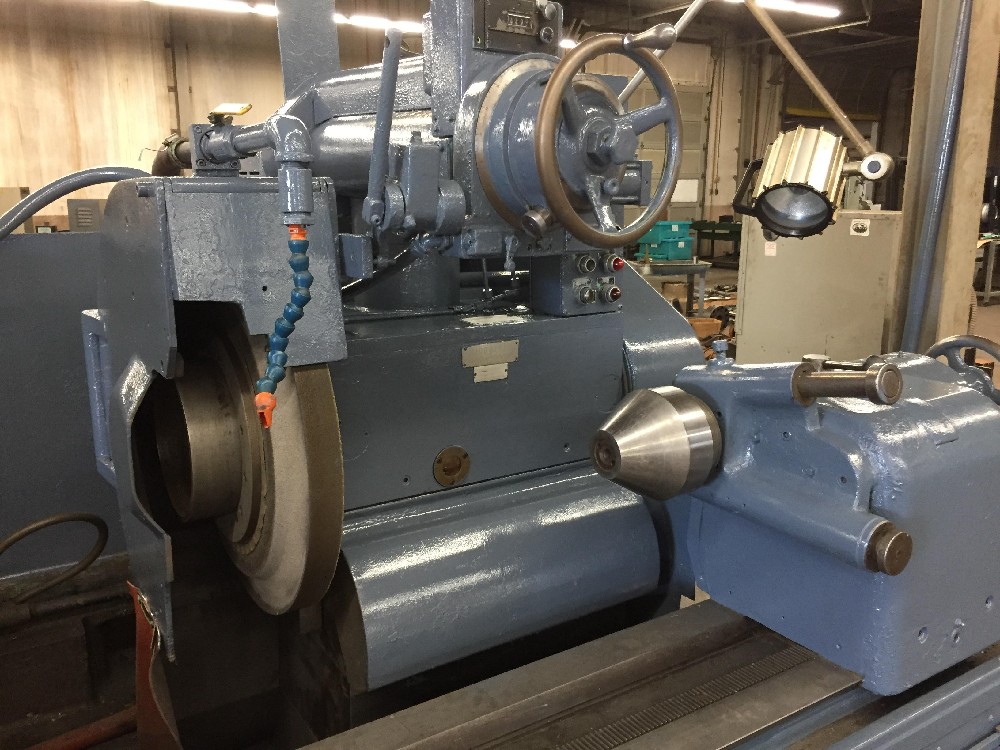

Tailstock Mounted Dresser
Coolant Pump & Tank
Various Live Centers

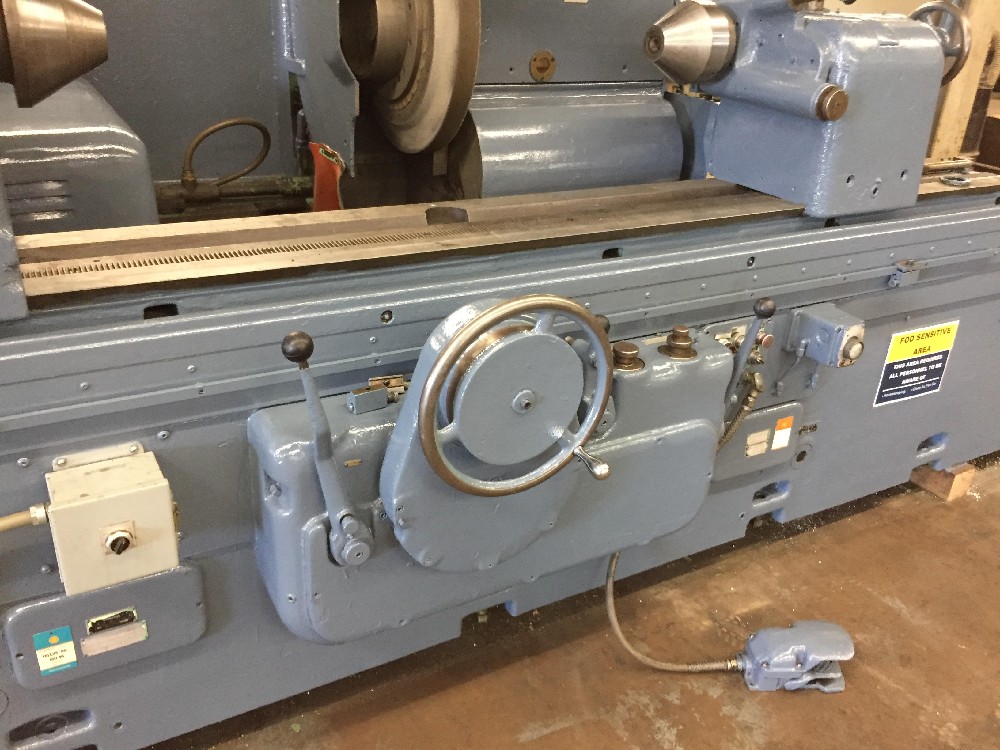

Foot Pedal Actuator
Splash Guards
Work Light
Manuals
15 HP Spindle Motor Drive 208-220/440/3/60
5-HP Hydraulic Pump Motor

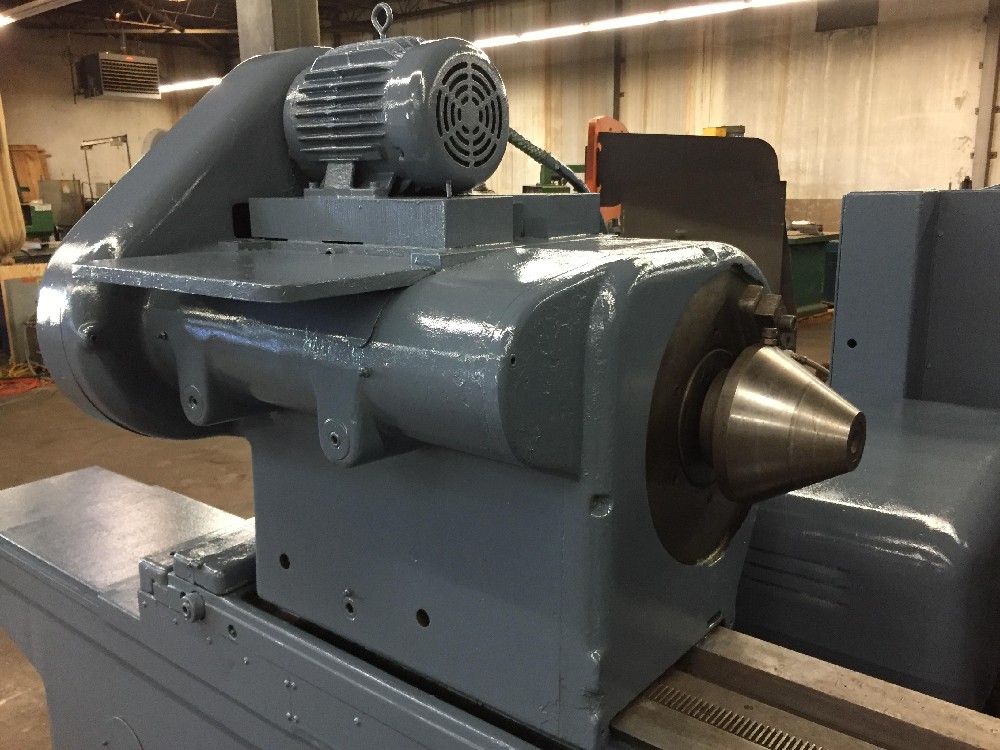

5-HP Work Head Motor
Very Good Running Condition - As Taken From Connecticut Aerospace Company.
