| Specification | Description |
|---|---|
| Number of Controlled Axis: | 2 |
| Swing Over Bed: | 17.72" |
| Swing Over Carriage: | 13.78" |
| Swing Over Cross Slide: | 11.81" |
| Maximum Turning Diameter: | 7.87" |
| Maximum Turning Length: | 14.96" |
| Spindle Speeds: | 75 - 3000 RPM |
| Spindle Diameter: | 3.94" |
| Spindle Thru Hole Diameter: | 2.59" |
| Spindle Nose Mount: | JIS A2-6 |
| X - Axis Travel: | 2.5" + 3.9" |
| X - Axis Feed Rate, Inches Per Revolution: | .00001 to 39.37 |
| X - Axis Rapid Feed Rate: | 787.4 IPM |
| Z - Axis Travel: | 15.75" |
| Z - Axis Feed Rate, Inches Per Revolution: | .00004 to 39.37 |
| Z - Axis Rapid Traverse Rate: | 984.25 IPM |

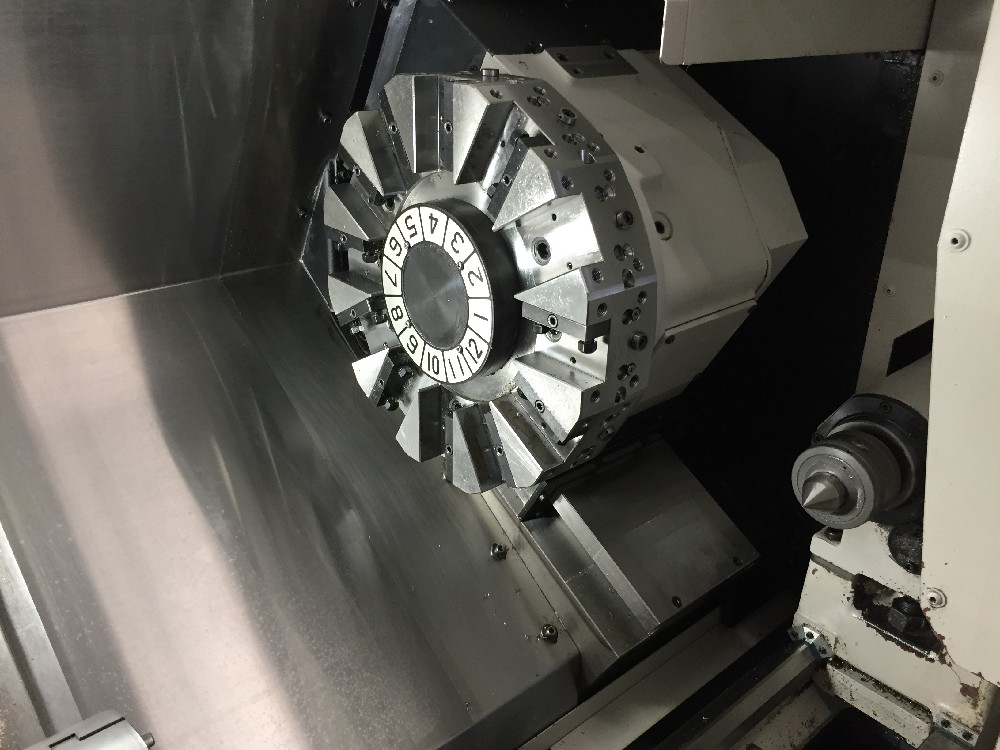

| Turret Type: | VDI |
| Turret Positions: | 12 |
| Turret Indexing Time, in Seconds: | 0.1/Step |

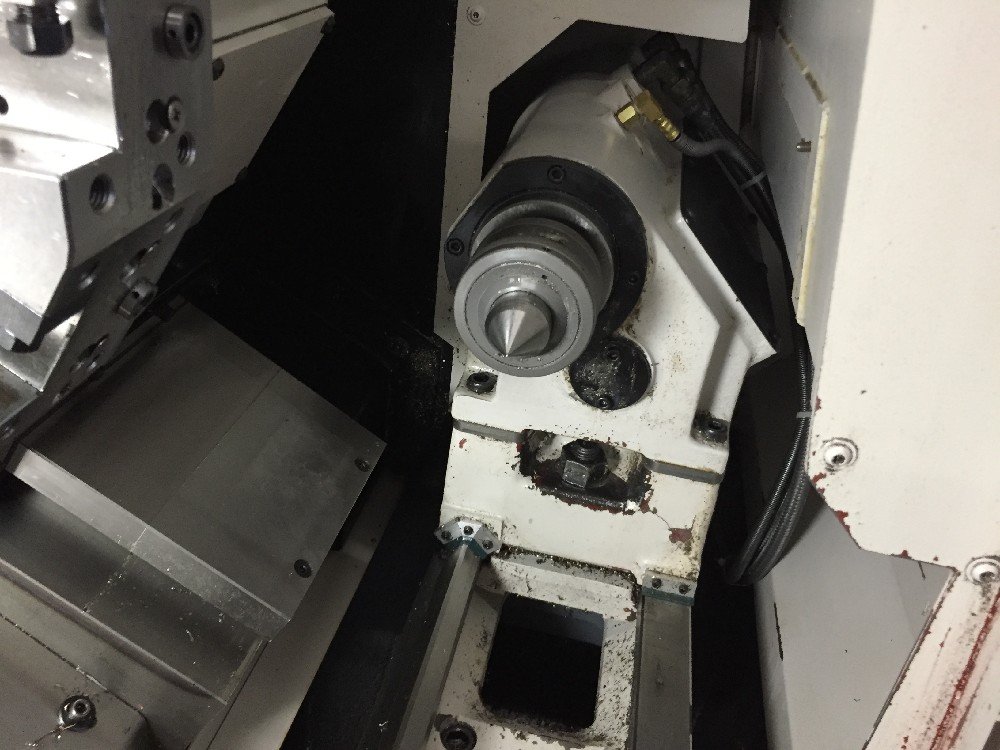

| Tailstock Spindle Taper Hole: | #5 MT |
| Tailstock Spindle Travel: | 3.94" |
| Recommended Floor Space: | 83" x 60" |
| Machine Weight, Approx.: | 8150 Lbs. |
