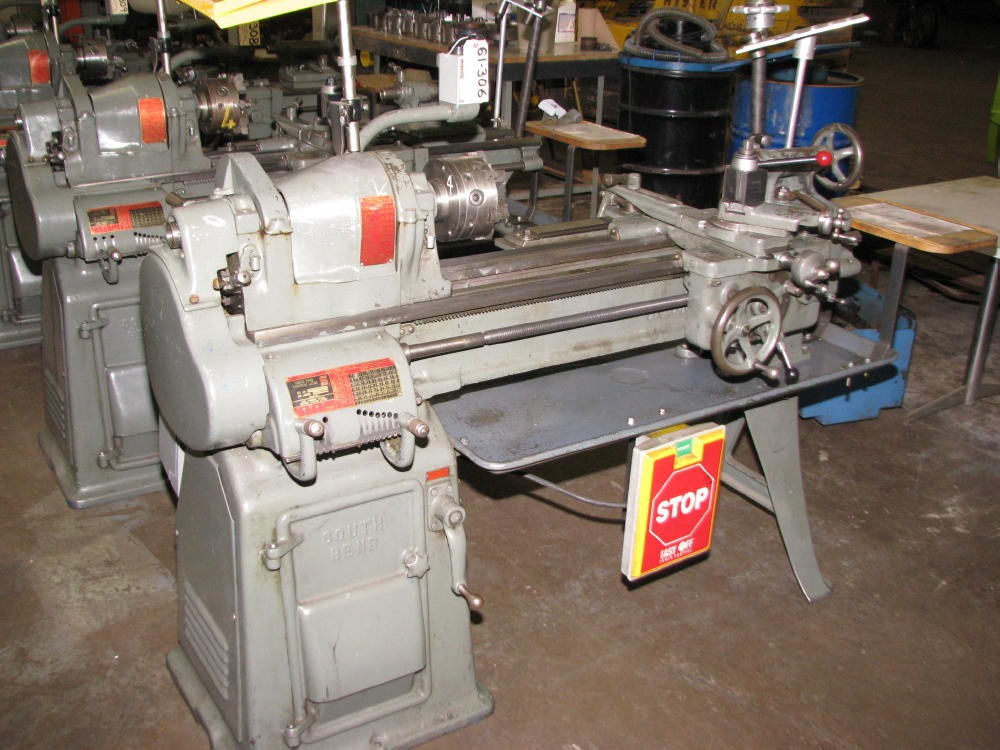

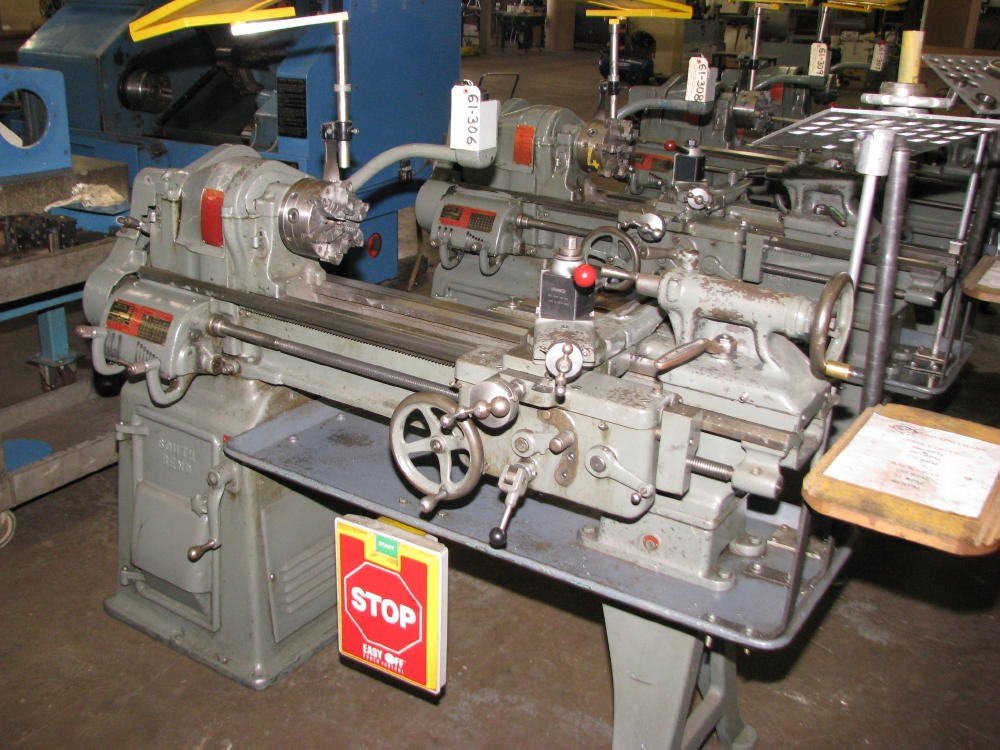

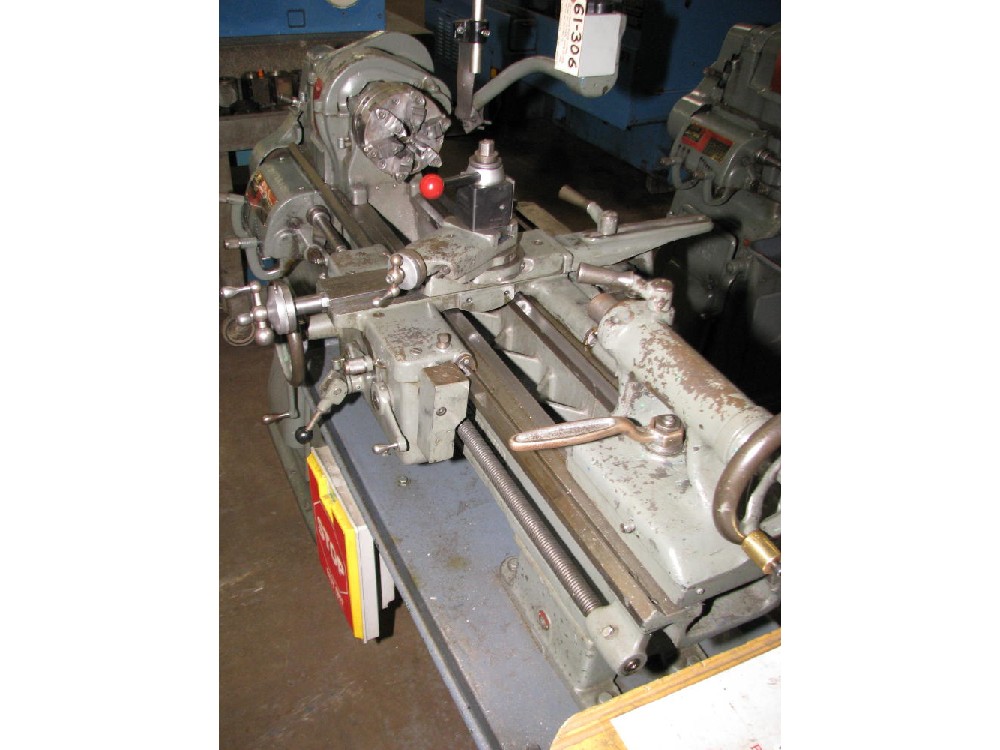

South Bend Engine Lathe
Stock Number: 061-306
Model: No. 13" x 28" CL145B
Serial No. 11619TKL14 Age: 1966
Price: $3,950
4-Step Cone Pulley with Back Gear.
Click to view larger photo
| Specification | Description |
|---|
| Swing Over Bed Ways: | 13-1/8" |
| Swing Over Cross Slide: | 7-3/4" |
| Maximum Distance Between Centers: | 28" |
| Spindle Speeds (8): | 40 - 940 RPM |
| Hole Thru Spindle: | 1-3/8" |
| Threaded Spindle Nose Mount: | 2-1/4"-8 |
| Threading Range (48): | 4 - 224 TPI |
| Longitudinal Feed Rates: | .0015" - .0841"/Rev. |
| Cross Feed Rates: | .0006" - .0315"/Rev. |
| Tailstock Quill Taper: | No. 3 MT |
| Tailstock Quill Travel: | 4-1/4" |
| Overall Machine Dimensions: | 80" x 32" x 60" High |
| Machine Weight, Approx.: | 1,700 Lbs. |
Equipped With:
Hand Wheel Type Draw Bar with Nose Piece
Updated Motor with Magnetek-Century E-Plus Motor

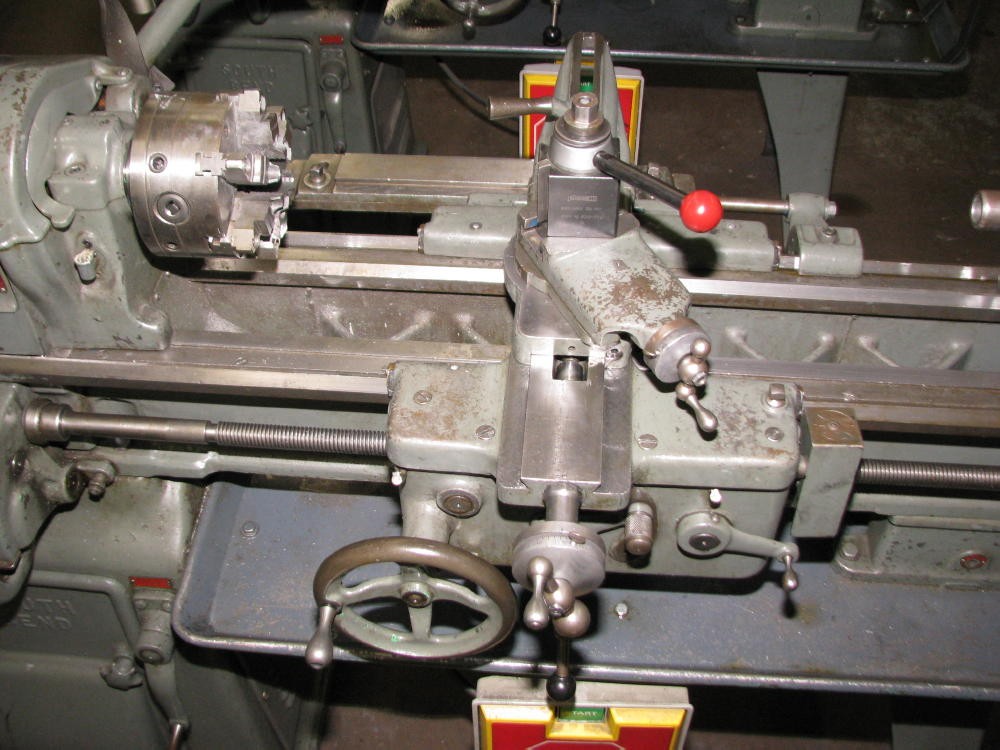

Quick Change Tool Post (no inserts)
Easy Stop Safety Shut-Off Switch
6.5" Bison 6-Jaw Set-Tru Chuck
8" Cushman 4-Jaw Chuck
6" Cushman 3-Jaw Chuck
Taper Attachment
Chip Safety Guard
Threading Dial
6.5" Dog Plate
Collet Rack
Manual
1.5 HP Motor 200/3/60
