Kingston Gap Bed Engine Lathe, 22/31" x 160"

Stock Number: 061-310

Model: No. HD-22160

Serial No. CH96-733      Age: 1997

Price: $19,000

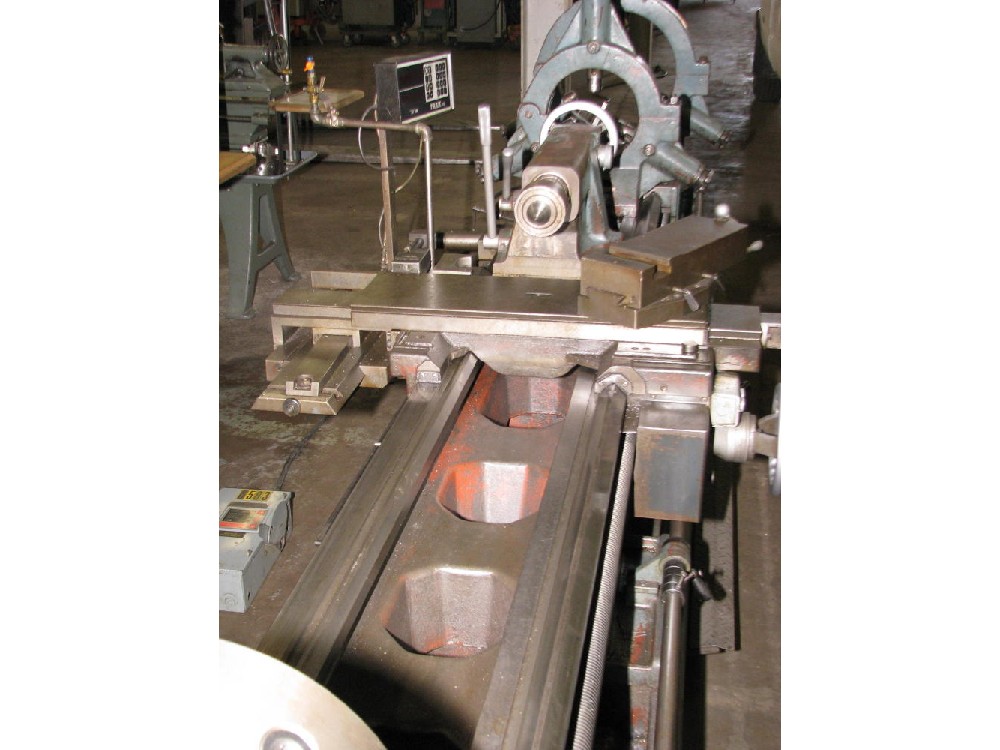

Taper Attachment


Click to view larger photo

SpecificationDescription
Swing Over Bed Ways:22"
Swing in Gap:31.38"
Swing Over Cross Slide:13.39"
Maximum Distance Between Centers:160"
Gap Width in Front of Faceplate:10.63"
Hole Thru Spindle:4.09"
Spindle Speeds, (12):13 - 1200 RPM
Spindle Nose Mount:D2-8"
Tailstock Taper:No. 5 MT
2-Speed Tailstock Quill Travel:7"
Longitudinal Carriage Feed Rates:.0014" - .039"/ Rev.
Cross Slide Feed Rates:1/2 of Longitudinal Feeds
Threading Range, Inch:2 - 72 TPI
Threading Range, Metric:0.2 - 14mm/P
Overall Machine Dimensions:17'6" x 4' x 52" High
Machine Weight, Approx.:7000 Lbs.

Equipped With:
Aloris Type Quick Change Holder with Inserts
20" 3-Jaw Chuck with Reversible Top Jaws
12" 3-Jaw Chuck with Reversible Top Jaws
SWI Trak 2-Axis DRO, .0005" Resolution
Multi-Position Longitudinal Stop
Longitudinal Rapid Traverse
15" Capacity Steady Rest
10" Capacity Steady Rest
Levelling Screws & Pads
Hard & Ground Ways
Taper Attachment
Threading Dial
Live Center
Foot Brake
Coolant

10 HP Motor 230/3/60

Very Good Condition
