| Specification | Description |
|---|---|
| Swing Over Bed Ways: | 20" |
| Swing Over Gap: | 28-11/32" |
| Swing Over Cross Slide: | 11-13/16" |
| Width of Gap: | 8-1/4" |
| Maximum Distance Between Centers: | 80" |
| Maximum Turning Length: | 74-13/16" |
| Spindle Speeds (24): | 11 - 1600 RPM |
| Spindle Hole Taper: | #6 MT |
| Hole Thru Spindle: | 3.150" |
| Longitudinal Feed Rates, (3) Ranges: | .0011 - .064"/Rev. |
| Cross Feed Rates, (3) Ranges: | .0005 - .032"/Rev. |

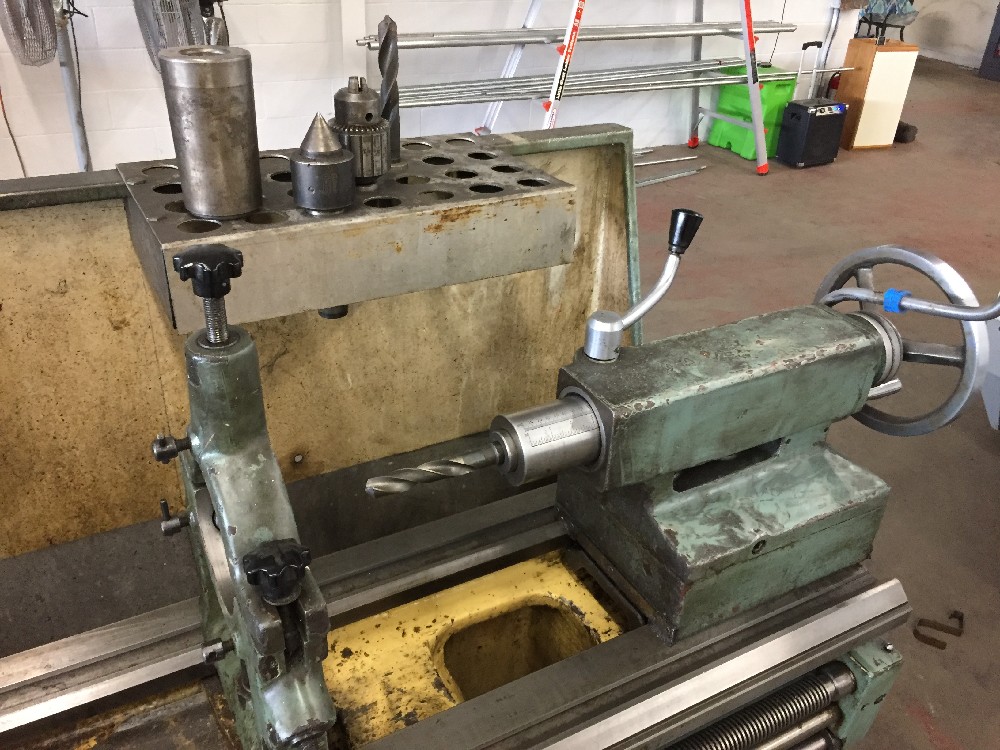

| Tailstock Taper: | #5 MT |
| Tailstock Quill Travel: | 5.9" |
| Metric Threading Range: | .5 - 96mm/P |
| Inch Threadinig Range: | 1 - 192 TPI |
| Overall Dimensions: | 145" x 42" x 52" High |
| Machine Weight, Approx.: | 6,000 Lbs. |
