Harrison 10-AA Tool Room Lathe


Harrison 10-AA Tool Room Lathe

Stock Number: 061-319

Model: No. 10-AA

Serial No. FG-6222      Age: 1973

Price: $3,950

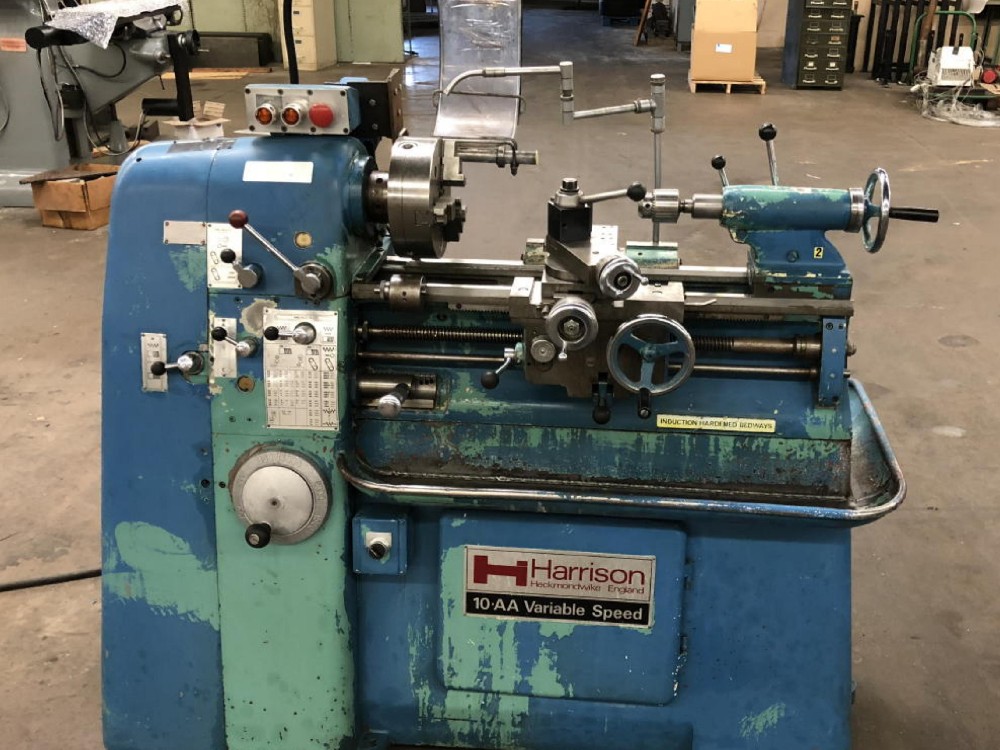

Click to view larger photo


SpecificationDescription
Swing Over Bed Ways:11"
Swing Over Cross Slide:7"
Maximum Distance Between Centers:20"
Spindle Speeds, Variable:35 - 3000 RPM
Hole Thru Spindle:1-3/8" Diameter
Spindle Nose Mount:D1-3
Spindle Center Taper:#3 MT
Threading Range, English:2 - 120 TPI
Threading Range, Metric:.5 - 12mm/P
Tailstock Taper:#3 MT
Tailstock Quill Travel:4-1/2"
Overall Machine Dimensions:56" x 36" x 50" High
Machin Weight, Approx.:1500 Lbs.

Equipped With:
8" 3-Jaw Cushman Chuck with Top Jaws
Rocker Style Tool Post with Tool Holder
Aloris Quick Change Tool Post
Micrometer Carriage Stop
Back Splash Chip Guard
Extra Set of chuck Jaws
5C Collet Nose Piece
10-1/2" Face Plate
Threading Dial
Follow Rest
Work Light
Drill Chuck
Dog Plate
Coolant

3-HP Motor Drive 230/3/60

Catalog specifications must be verified prior to purchasing.
