Leblond Gear Head Engine Lathe/

Leblond Gear Head Engine Lathe/

Stock Number: 061-322

Model: No. 19"-E, 19" x 54"

Serial No. 6E-703      Age: 1966

Price: $4,950




Click to view larger photo

SpecificationDescription
Swing Over Bed Ways:19-1/4"
Swing Over Cross Slide:12-1/4"
Distance Between Centers:54"

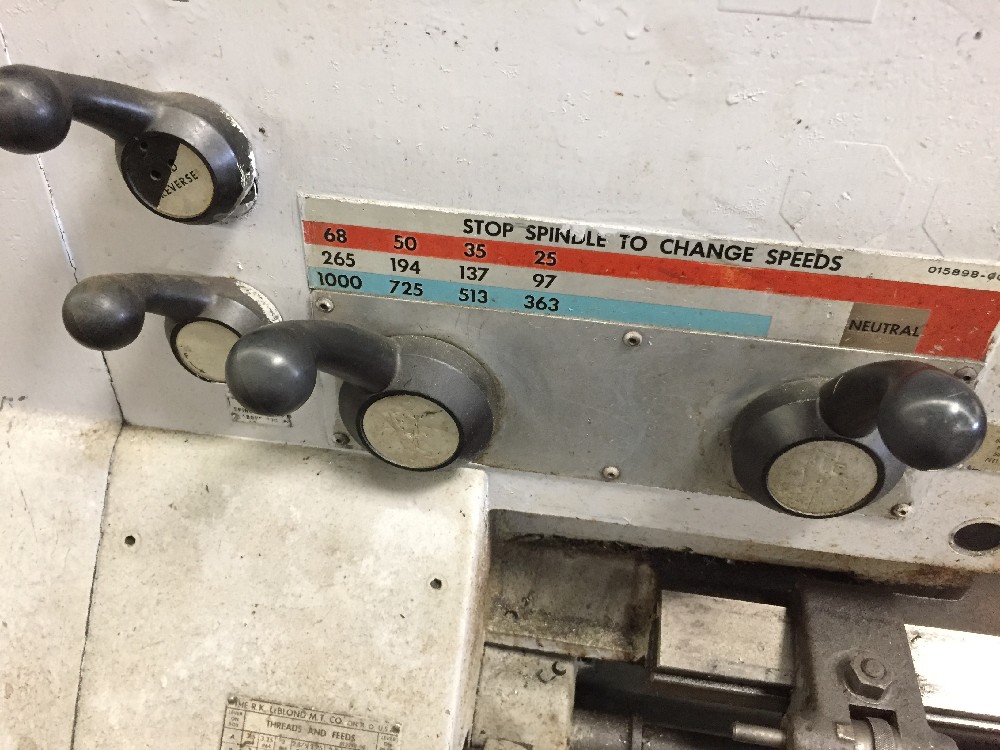

Spindle Speeds (12):25 - 1000 RPM
Hole Thru Spindle:1.765"
Spindle Nose Mount:L-1

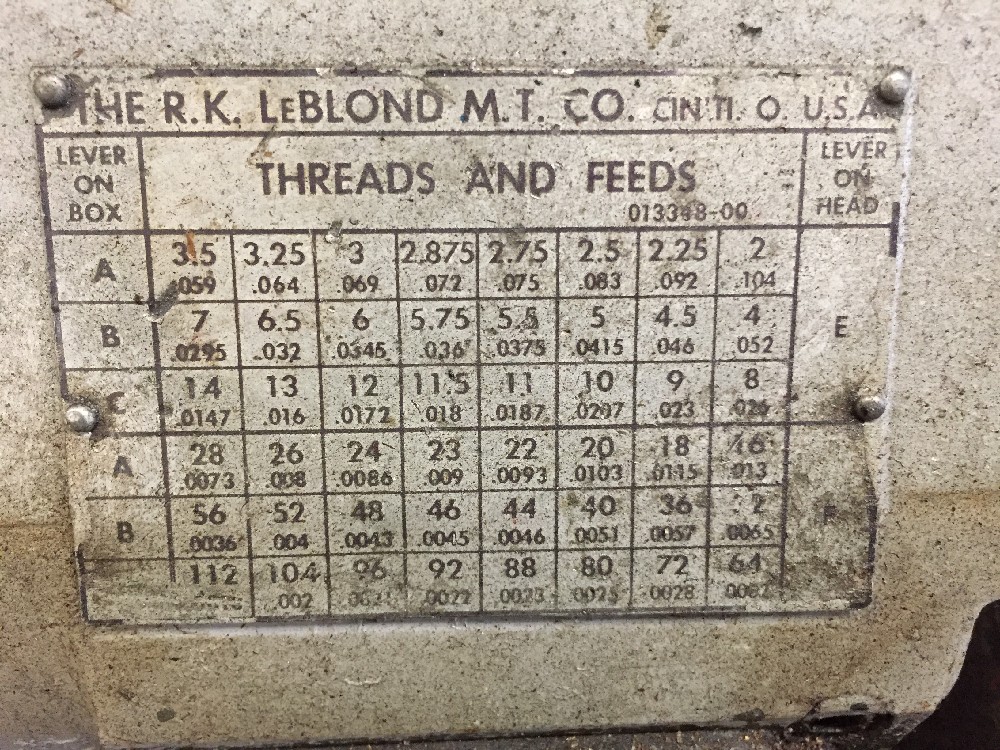

Threading Range:2 - 112 TPI
Longitudinal Feed Rates:.0018" - .104"/Rev.
Tailstock Quill Travel:7"
Tailstock Quill Taper:#4 MT
Overall Machine Dimensions:109" x 52" x 56"
Machine Weight, Approx.:4770 Lbs.

Equipped With:

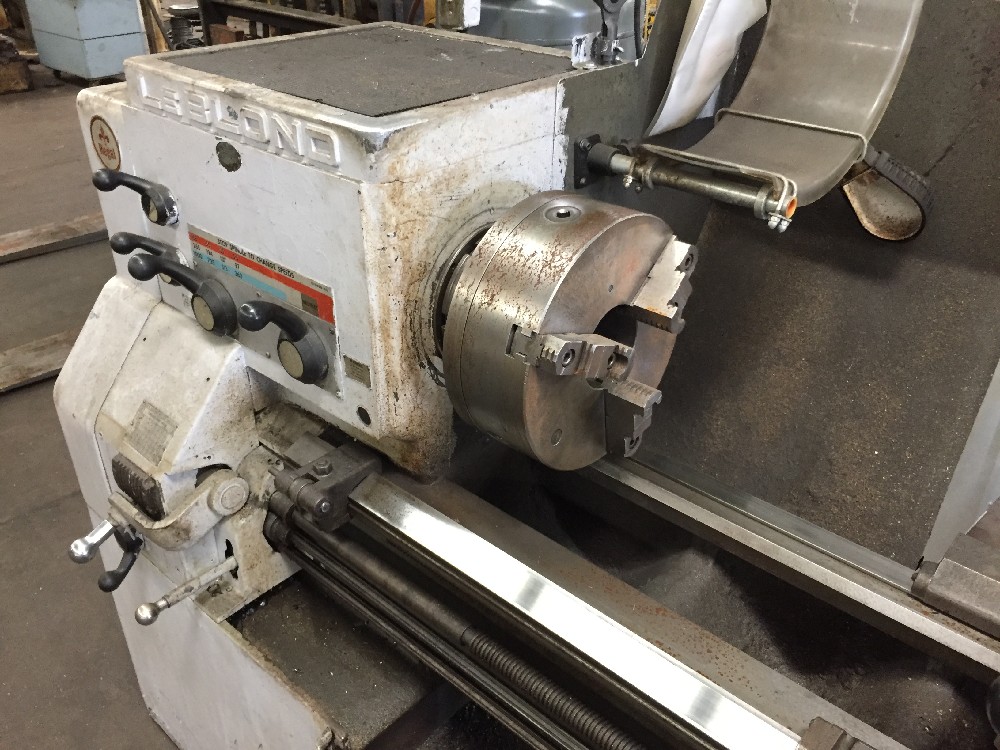

Bison 12" 3-Jaw Chuck with Reversible Hard Top Jaws

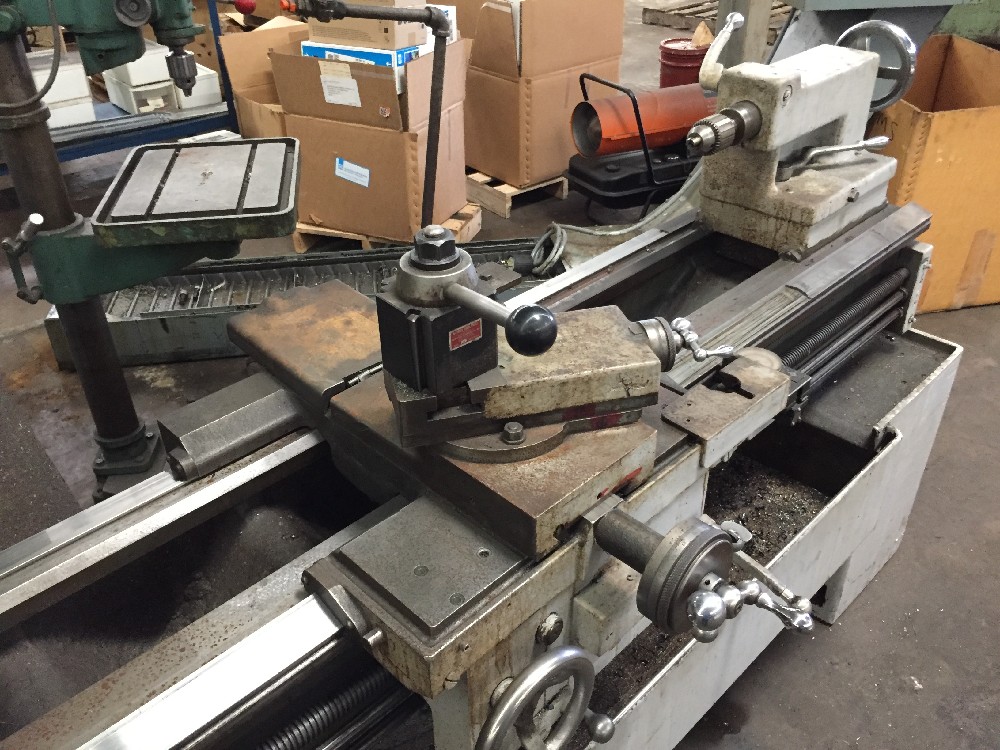

Aloris Type CA Tool Holder (no inserts)
Trav-A-Dial on Longitudinal Feed
Jacobs 3/8" Capacity Drill Chuck
Micrometer Carriage Stop
Threading Dial
Chip Sheild
Work Light
Coolant

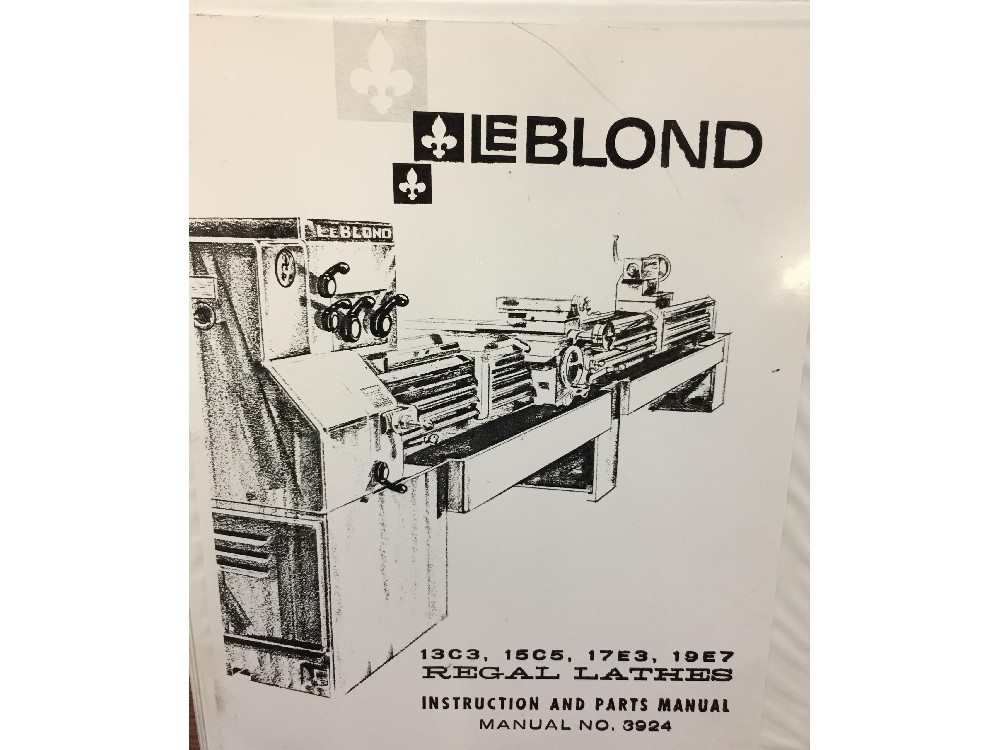

Manual

7.5 HP Motor Drive 230/3/60

Good Conditiion
