Matsuura Twin Spindle 3-Axis CNC Vertical Machining Center

Matsuura Twin Spindle 3-Axis CNC Vertical Machining Center

Stock Number: 076A-194

Model: No. MC760V-DC

Serial No. 85034587      Age: 1985

Price: $4,950

As taken from original owner's facility to make room for larger Matsuura VMC.

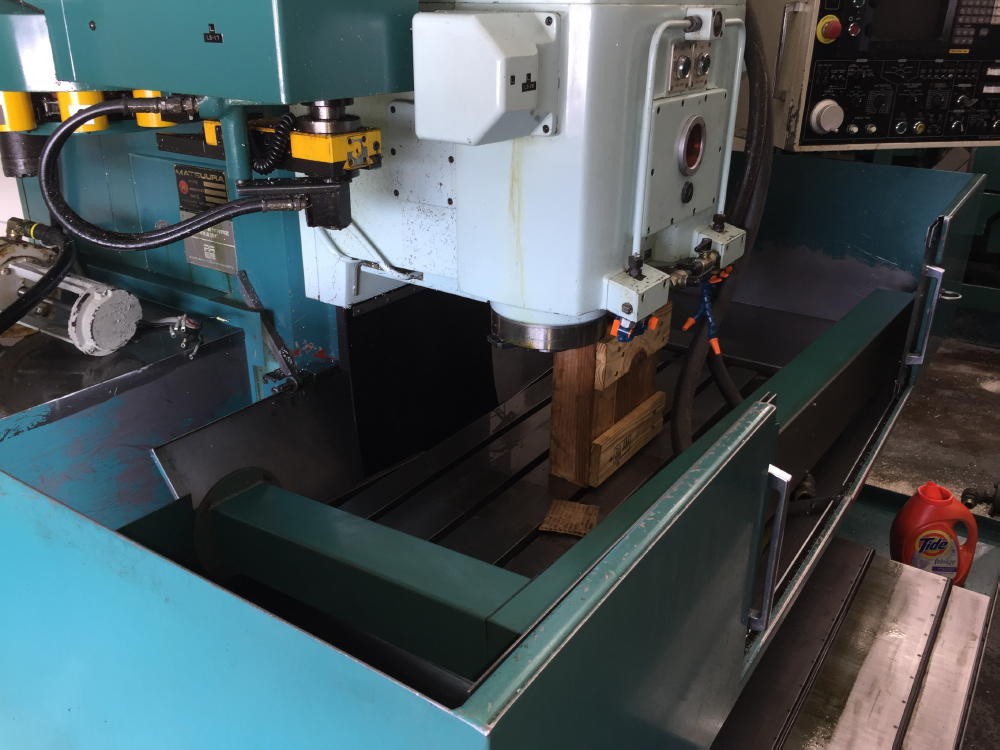

Click to view larger photo

SpecificationDescription
Table Size:45" x 16"
X - Table Travel:30"
Y - Axis Travel:16"
Z - Axis Travel:19"
Table Load Capacity:1100 Lbs.
Distance Between Spinld Centers:13.97"
Distance From Table Top to Spindle Nose:5.9" - 25"
Distance From Spindle Center to Column Ways:17.32"
Spindle Speeds, Variable:25 - 4000 RPM
Spindle Nose Taper:BT 40
Automatic Tool Changer:25-Positions x 2
Cutting Feed Rates:0.1 - 118 IPM
Rapid Feed Rates, X & Y:472 IPM
Rapid Feed Rates, Z:393 IPM
Overall Machine Dimensions:85" x 93" x 102" High
Machine Weight, Approx.:12000 Lbs.

Equipped With:
Fanuc 11M CNC Control, CRT & RS-232 Port
Coolant Pump & Tank
Hydraulic Unit
Spindle Chiller
Levelling Pads
Manuals

7.5 HP Spindle Motor

Very Good Condition
