| Specification | Description |
|---|---|

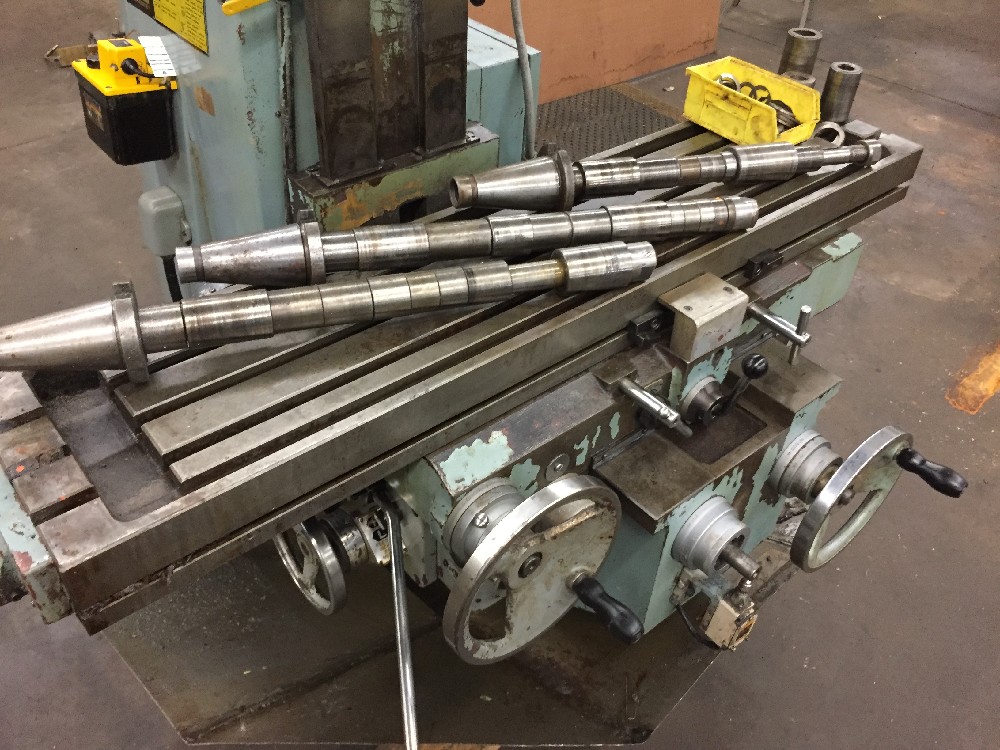

| Table Size: | 51" x 11" |
| Longitudinal Table Travel: | 39.4" |
| Saddle Cross Travel: | 16" |
| Knee Vertical Travel: | 17.7" |
| Max. Dist. Spindle Center to Table Top: | 19.7" |

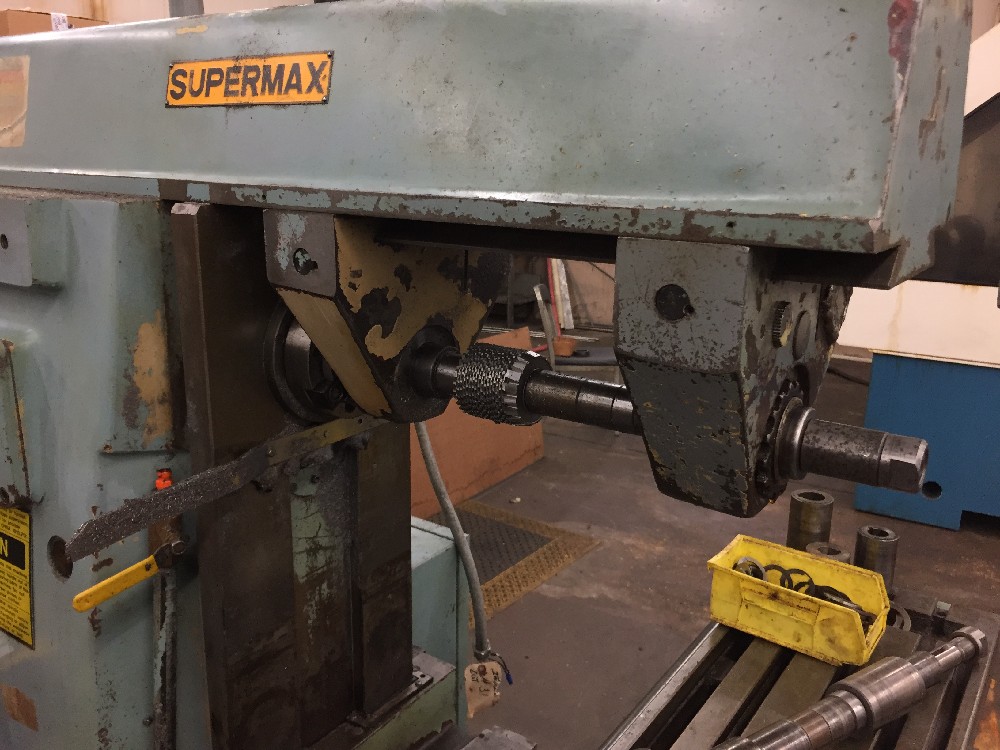

| Distance Spindle Center to Overarm: | 4.92" |
| Spindle Nose Taper: | #50 |
| Spindle Speeds (9): | 85 - 1300 RPM |
| Longitudinal & Cross Feed Rates (12): | .6 - 27.6 IPM |
| Longitudinal & Cross Feed Rapid Rate: | 118 IPM |
| Vertical Rapid Feed Rate: | 31.5 IPM |
| Overall Dimensions: | 75" x 65" x 65" |
| Machine Weight, Approx.: | 5000 Lbs. |
