| Specification | Description |
|---|---|
| Table Diameter: | 9.81" |
| Table Height at 0 Deg. Tilt: | 8.125" |
| Table Center Height at 90 Deg. Tilt: | 5.51" |

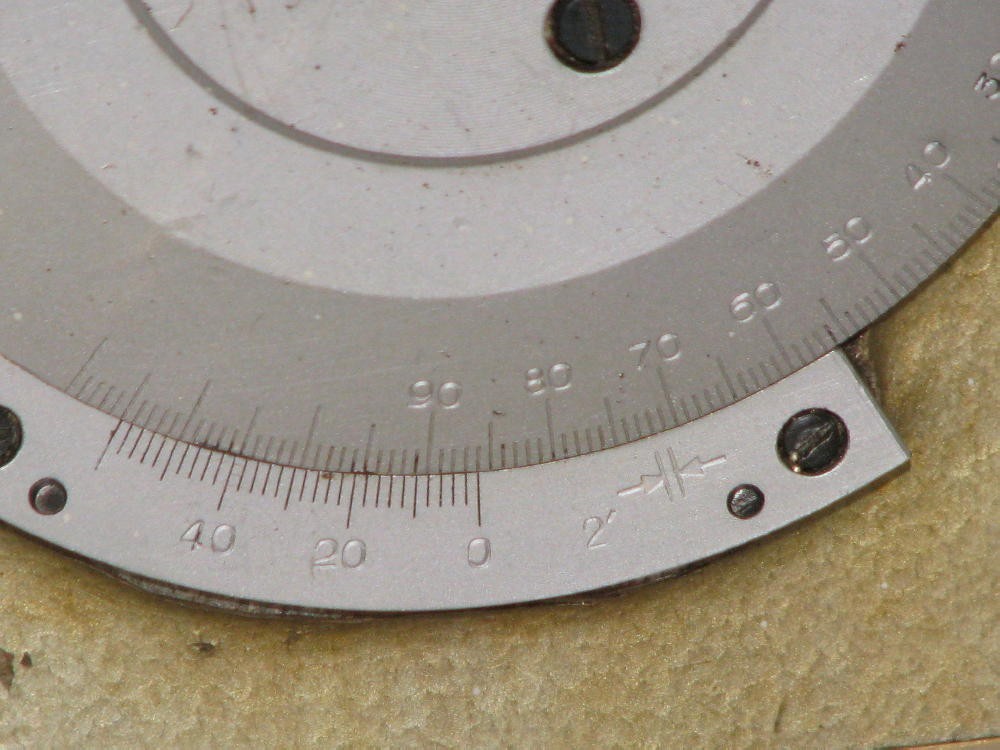

| Rotary Vernier Readings: | 10 - Seconds |
| Tilting Vernier Readings: | 1- Minute |

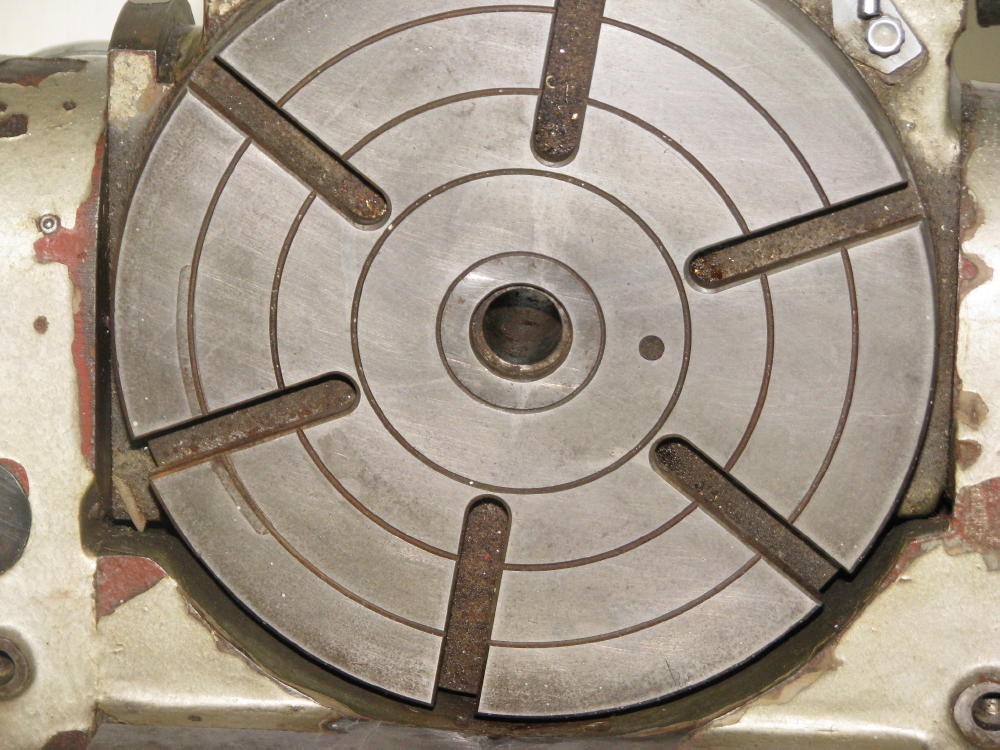

| Number of Radial Positioned T-Slots: | 6 |
| Size of T-Slots: | 1/2" |
| Centering Hole Diameter: | 1.2" |
| Center Hole Taper: | #3 MT |
| Overall Table Dimensions: | 20" x 14" x 8-1/8" |
| Table Weight, Approx.: | 170 Lbs. |
