Airlox Heavy Duty Air Operated Machine Vise


Airlox Heavy Duty Air Operated Machine Vise

Stock Number: 110C-045

Model: No. S200, Series 21

Serial No. N/A


This is an extremely heavy duty machine vise. The ratio of gripping force to air pressure on this model is 200 times. Therefore by supplying the vise with 100 psi, the gripping power of the jaws would be 20,000 Lbs.

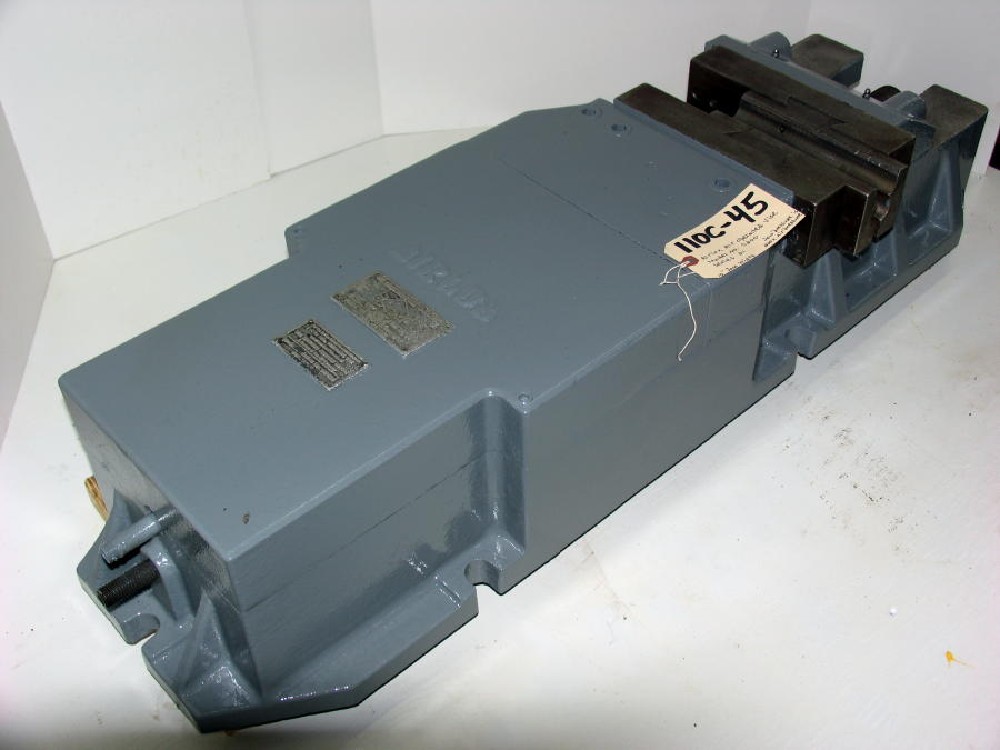

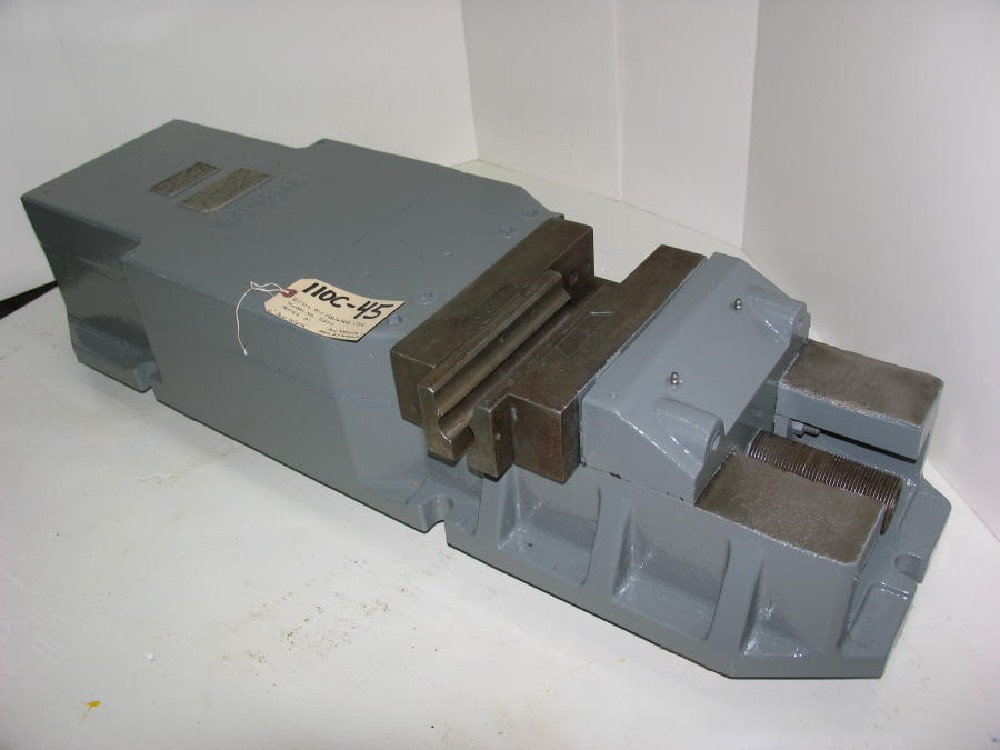

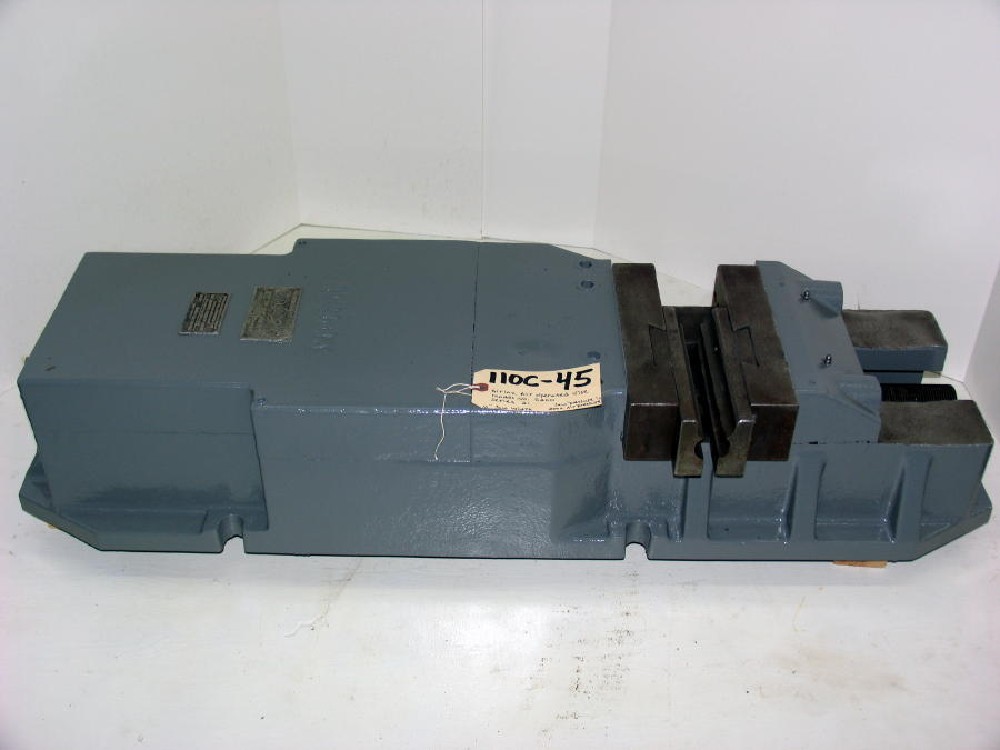

Click to view larger photo


SpecificationDescription
Jaw Face:10" x 3"
Maximum Opening Between Faces:10"
Stroke Adjustment of Moveable Jaw:1/16" - 5/8"
Overall Size of Vise:8-3/4" H x 13-1/8" W x 45" L
Weight of Vise:575 Lbs.

Equipped With:
Two-Way Air Valve

Good Condition
